Enclosure support to module

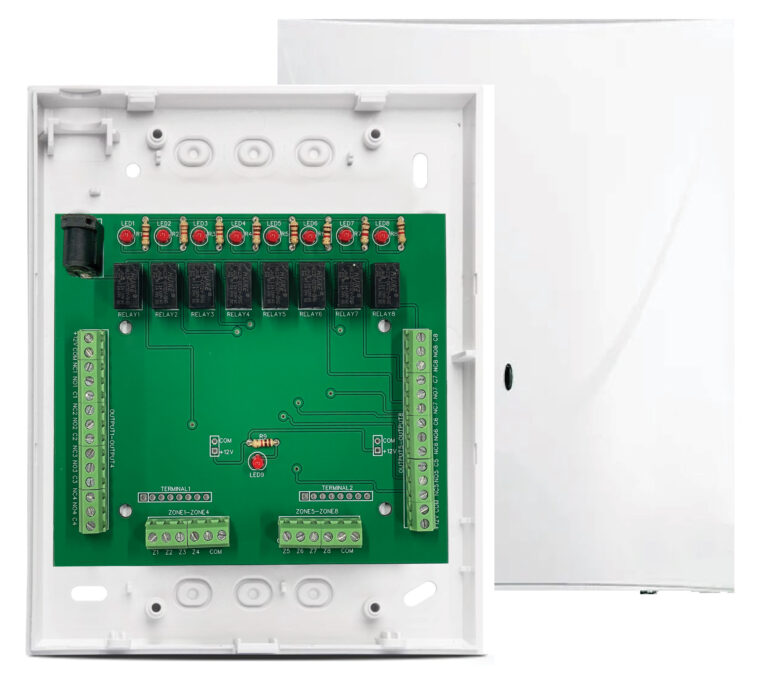

ESM-210-For-ACX-210
This small expander will allow you to use typical wired detectors in the system and control wired devices.
- 4,8 programmable inputs :
– support for NO and NC type detectors
– support EOL and 2EOL configurations - 4,8 OC type output
- power supply 12 V DC
Operating frequency band ……………………………………………………………… 868.0 MHz ÷ 868.6 MHz
Radio communication range (in open area) ………………………………………………………….up to 1400 m
Supply voltage ………………………………………………………………………………………………..12 V DC
Standby mode current consumption …………………………………………………………………….. 30,60 mA
Maximum current consumption ………………………………………………………………………….. 35,70 mA
Relay output (resistive load) N C,NO ……………………………………………………….. 2000 mA / 24 V DC
Sensitivity ………………………………………………………………………………………………10ms – 5000ms
Impulses Time ………………… …………………………………………………………..30s,120s,240s,To Disarm
Impulses Count ……………….. …………………………………………………………………………….1-8 Count
Complied with standards …………………………………………………………………EN 50130-4, EN 50130-5
Environmental class according to EN50130-5 ……………………………………………………………………. II
Operating temperature range ……………………………………………………………………….-10°C…+55°C
Maximum humidity …………………………………………………………………………………………….. 93±3%
Dimensions …………………………………………………………………………………………126 x 158 x 32 mm
