Outdoor Curtain Detector
The outdoor curtain detector will detect an intruder as soon as they cross the fence line of your property. This will minimize the likelihood that they will decide to enter further, and you will additionally gain time to react. Your BE WAVE system can also, in response to detecting movement, e.g. turn on all the lights in the garden. They can, for example, flash, which will certainly attract the attention of the neighbours.
- PIR and MW motion detector

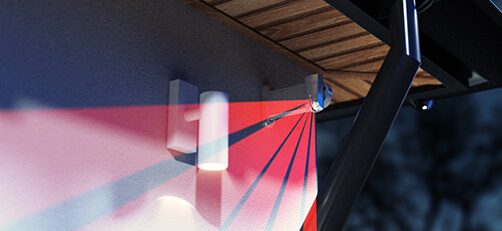

- coverage area 10 m x 0,6 m, angle 6°
- digital motion detection algorithm for both sensors
- digital temperature compensation
- built-in temperature sensor – measuring range: -40°C…+55°C
- LED indicator
- supervision of motion detection system
- operation in the 868 MHz frequency band
- AES encrypted two-way radio communication
- transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals
- remote settings programming
- remote firmware update
- battery status control
- weatherproof enclosure – IP54 ingress protection
- option to mount HOOD A protective cover on the detector’s enclosure
- operating temperature range from -40°C to +55°C
- tamper protection against enclosure opening and removal from mounting surface
- compliance with EN 50131 Grade 2 – for indoor applications
- angle-type bracket included
- can be installed with the use of dedicated brackets from BRACKET E set:
- BRACKET E-1 (GY) – body for attaching the BRACKET E-2A inserts
- BRACKET E-2A (GY) – insert for mounting curtain detectors also on the BRACKET A or BRACKET B holder
- BRACKET E-3 (GY) – 30 mm distance piece enabling the detector to be distanced from the wall or ceiling
- BRACKET E-4 (GY) – 20 mm mounting base
- BRACKET E-6 – tamper sensor with NO/NC switch and 50 cm long cables
