Smart 2-CH Relay

2 separate channels for turning ON / OFF up to two 230 V AC electrical appliances
2 relay outputs:
- remote control
- local control by means of control inputs
- galvanic isolation of the outputs
- maximum load: 2 x 1250 W
- current load capacity: 2 x 5 A
2 control inputs:
- capability to connect a double push-button or a switch
- local control of the relay output
- capability to control any device in the system
operation in the 868 MHz frequency band
AES encrypted two-way radio communication
transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals
remote settings programming
remote firmware update
protection against overload and overheating
housing made of non-flammable plastic

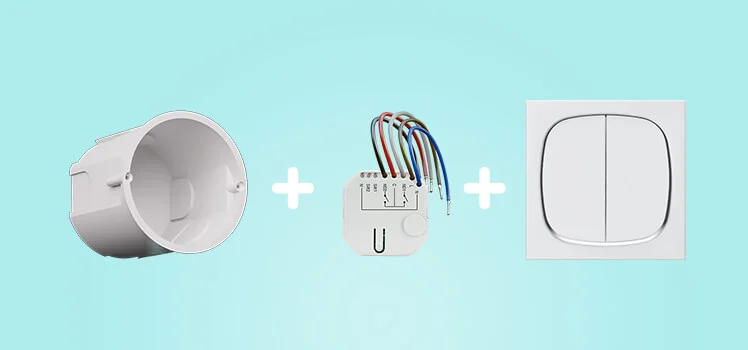

installed in a flush- or surface-mounted junction box with a minimum diameter of 60 mm
