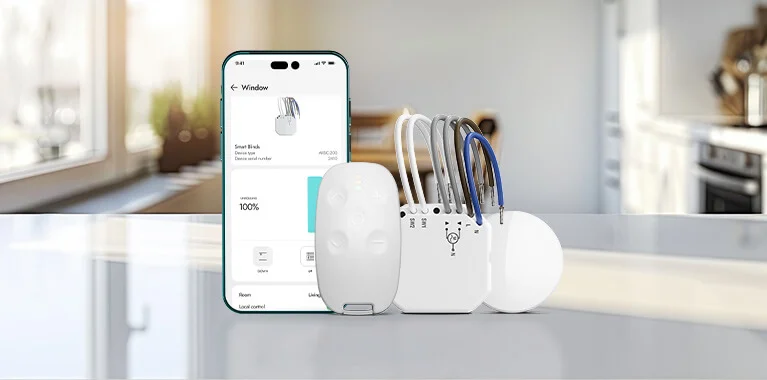

Smart Blinds

control of roller blinds / shutters / window actuators – 230 V AC motors
- maximum load: 350 W
- current load capacity: 1,7 A
remote control or local control by means of control inputs
automatic detection of blind / shutter travel time
tilt control of horizontal blinds
detection of blind / shutter errors – no power, incorrect position, mechanical jam, motor overheating
2 control inputs:
- capability to connect a double push-button or a roller blind switch
- local blind / shutter control
- capability to control any device in the system
operation in the 868 MHz frequency band
AES encrypted two-way radio communication
transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals

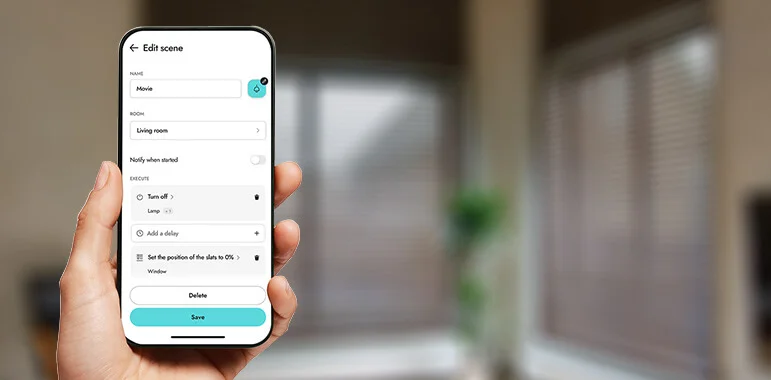

remote settings programming
remote firmware update
housing made of non-flammable plastic
installed in a flush- or surface-mounted junction box with a minimum diameter of 60 mm
